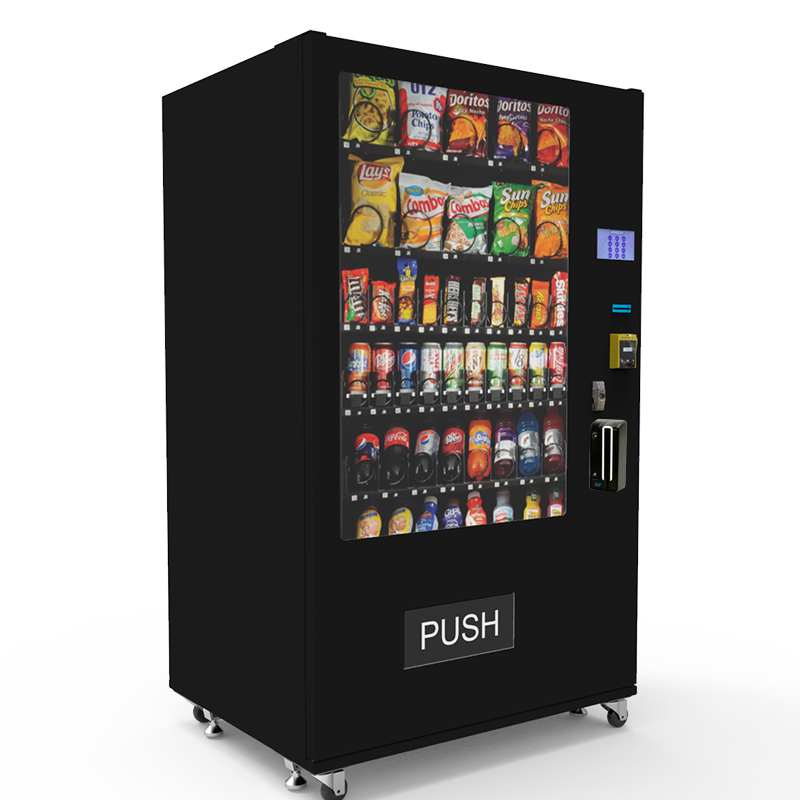

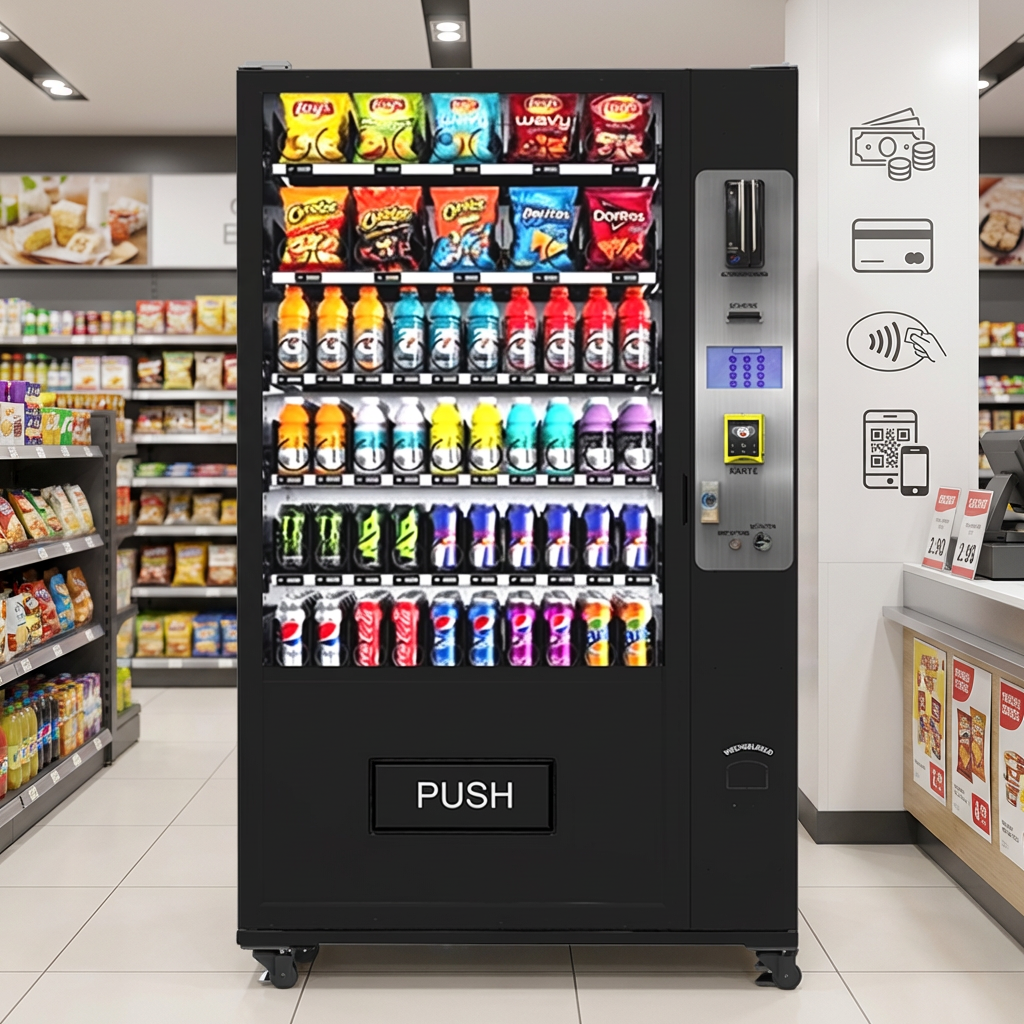

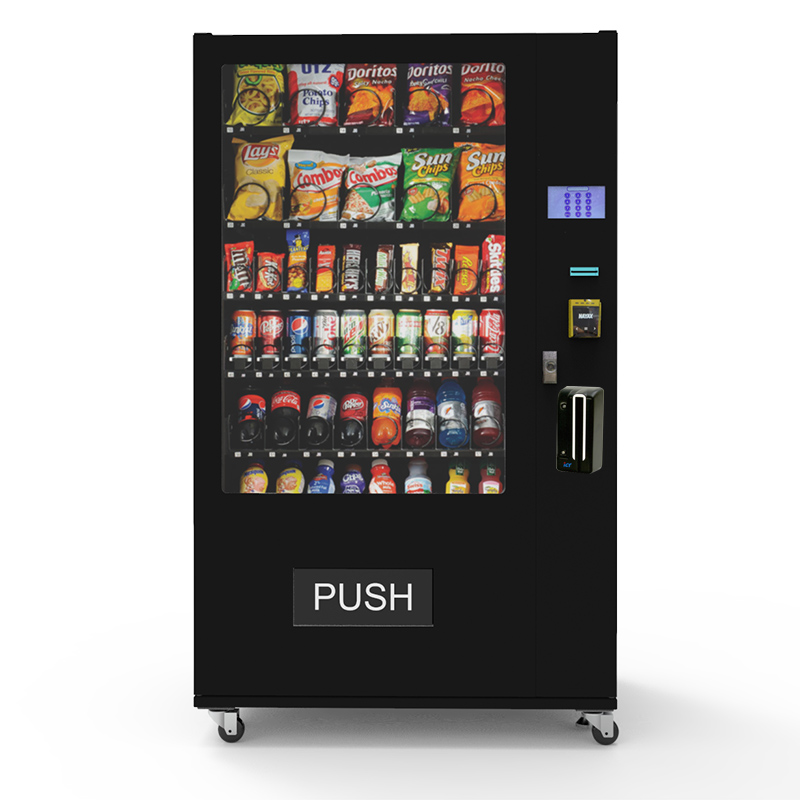

This customized drink and snack vending machine is purpose-built for Germany and broader European deployment. It combines a high-capacity refrigerated beverage dispensing system with a spacious snack carousel inside a single compact footprint. Fully compliant with CE and GS directives, the machine accepts euro coins, banknotes, and all major cashless payment methods — including contactless NFC and mobile wallet payments widely adopted across the EU. Whether you are outfitting a busy train station, a corporate office, a university campus, or a retail storefront, this machine delivers reliable 24/7 automated retail with minimal maintenance overhead.
CE & GS certified with WEEE-compliant components. 220V/50Hz power system, Schuko-ready plug configuration, and refrigerant meeting EU F-Gas regulations.
Integrated multi-coin acceptor and bill validator calibrated for euro denominations. Supports contactless Visa, Mastercard, Google Pay, and Apple Pay out of the box.
Natural R290 refrigerant delivers rapid pull-down cooling with low global warming potential. Temperature consistently maintained between 3°C and 10°C for beverages.
German, English, French, and Italian pre-loaded on the 21.5" touchscreen. Easily add regional dialects through the cloud-based content management portal.
| Place of Origin | China (Custom Manufacturing Hub) |
| Brand Name | OEM / Custom Brand Available |
| Model Number | DSV-GE21.5 Combo Series |
| Type | Drink & Snack Combo Vending Machine |
| Voltage | 220V / 50Hz (European Standard) |
| Power | 450W (Peak) / 280W (Average Operation) |
| Dimension (H x W x D) | 1900mm x 1200mm x 850mm |
| Net Weight | Approx. 360 kg |
| Total Capacity | Up to 500 items (Drinks + Snacks combined) |
| Drink Capacity | Up to 300 cans/bottles (355ml standard can format) |
| Snack Capacity | Up to 200 items across 40 spiral trays |
| Payment System | Coin Acceptor (EUR) + Bill Validator (€5/€10/€20) + NFC Contactless (Visa/MC/GPay/Apple Pay) |
| Screen Type | 21.5" Full HD Capacitive Touchscreen (1920x1080) |
| Refrigeration System | R290 Natural Refrigerant Compressor Cooling |
| Temperature Range | 3°C to 10°C (Beverage compartment only) |
| Compressor Brand | Embraco / Danfoss (Specify preference when ordering) |
| Material | Cold-Rolled Steel Cabinet + Powder Coating; Tempered Glass Front Panel |
| Color Options | Custom RAL Color Matching Available; Standard: White, Dark Gray, Black |
| Coin Acceptor | Multi-coin acceptor programmable for all euro coin denominations |
| Bill Validator | 4-way bill acceptor, euro banknote compatible with anti-counterfeit detection |
| Cashless Payment Module | NFC/EMV Contactless Terminal — Visa, Mastercard, Google Pay, Apple Pay |
| Language Support | German, English, French, Italian (Additional languages available on request) |
| Certification | CE, GS, RoHS, WEEE Compliant |
| MOQ | 1 Unit (Sample Order Accepted) |
| Supply Ability | 500+ Units Per Month |
| Delivery Time | 15-25 Working Days After Order Confirmation |
| Packaging | Export-Grade Plywood Crate with Custom Foam Cutouts & Moisture Barrier |
| Warranty | 12 Months Standard Warranty (Extended plans available) |
| After-sales Service | 24/7 Online Technical Support, Remote Diagnostics, Spare Parts Supply, Partner Service Network in Germany |
The beverage compartment uses an R290 natural refrigerant compressor paired with a digitally controlled thermostat. Unlike older HFC-based systems, R290 offers superior thermodynamic efficiency while aligning with the EU F-Gas phase-down schedule. An intelligent sleep mode reduces compressor cycling during low-traffic hours, cutting energy consumption by up to 30% compared to conventional units. Glass-door models feature double-pane low-E tempered glass to minimize thermal loss without sacrificing product visibility.
The Full HD capacitive display is your 24/7 silent salesperson. High-resolution product images, animated promotions, and cross-sell suggestions are all configurable through a cloud-based CMS — no programming skills required. The interface supports video playback, nutritional information overlays, and dynamic pricing rules based on time of day or inventory levels. German-language UI comes pre-installed, with the option to toggle between multiple European languages on the fly.
A multi-layered payment stack ensures no customer walks away. The integrated euro coin acceptor recognizes all eight euro coin denominations with a 99.5% first-pass acceptance rate. The 4-way bill validator handles €5, €10, and €20 notes with UV and magnetic anti-counterfeit verification. For cashless users, the NFC terminal processes tap-to-pay transactions under 1.5 seconds — critical for high-throughput locations like train stations and airport concourses.
The cabinet is fabricated from 1.2mm cold-rolled steel with a zinc-phosphate anti-corrosion pre-treatment before powder coating. This process exceeds ISO 12944 C3 corrosion standards, making the machine suitable for semi-exposed locations like covered outdoor platforms. The front panel uses 5mm tempered safety glass with an anti-fingerprint oleophobic coating. All door hinges and locking mechanisms are stainless steel, rated for over 100,000 open/close cycles.
As the manufacturer, we offer extensive customization at the factory level — no middlemen, no markup on custom work. Here is what you can personalize:
Every machine is packed in a custom-built export-grade plywood crate with high-density foam cutouts that cradle the unit on all six sides. A moisture-resistant VCI (volatile corrosion inhibitor) film wraps the cabinet before crating to prevent condensation damage during ocean freight. Each crate is fumigated and ISPM 15 compliant for direct entry into EU ports without customs delays. We ship from major Chinese ports (Shanghai, Ningbo, Shenzhen) with weekly sailings to Hamburg, Bremerhaven, and Rotterdam — typical transit time to Germany is 28-35 days by sea, with express air freight options available for urgent orders.
We stand behind every machine that leaves our factory. Our after-sales infrastructure includes a partner service network covering major German metropolitan areas — Berlin, Munich, Hamburg, Frankfurt, Cologne, and Stuttgart. Remote diagnostics via the telemetry module allow our engineers to troubleshoot 80% of issues without an on-site visit. Critical spare parts are stocked at a forward warehouse near Frankfurt for next-day dispatch across the DACH region. For operators who prefer self-maintenance, we provide comprehensive video training libraries and multilingual service manuals.
Yes. Every unit destined for Germany is configured for 220V/50Hz with a Schuko-compatible plug and carries CE and GS certification marks. The electrical system meets VDE standards.
Absolutely. Our MOQ is 1 unit for sample evaluation. We encourage customers to test the machine in their specific environment before committing to larger volumes.
The included cloud-based telemetry platform provides real-time dashboards for sales tracking, inventory alerts, and machine health monitoring. Accessible via web browser or mobile app.
We partner with certified service providers in major German cities for installation, preventive maintenance, and emergency repairs. Contact us with your location for availability details.
Contact our sales team for a tailored quotation, shipping estimate, or technical consultation. Factory-direct pricing with no hidden fees.
